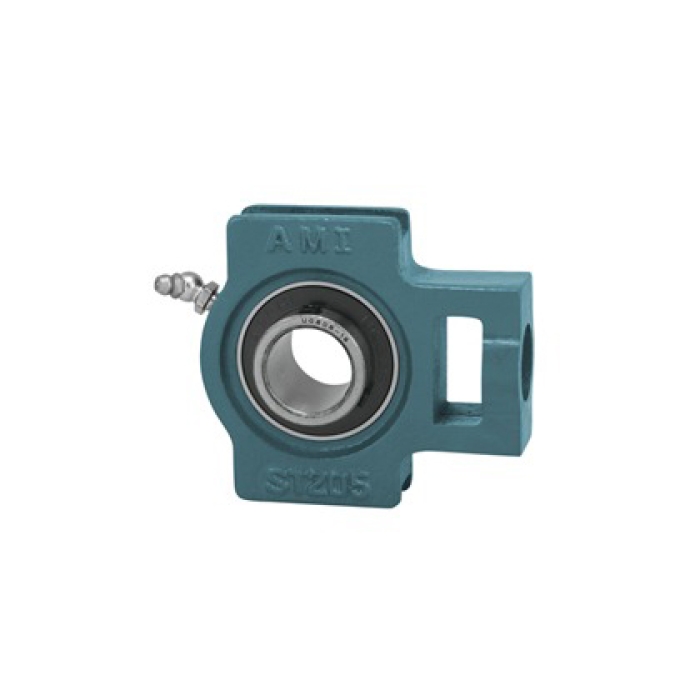

AMI Bearings UCST205-16 AMIUCST205-16
UCST205-16 is a wide-slot take-up unit for 1" shafts, designed for belt/chain tensioning and easy adjustment in take-up frames.
- Manufacturer: AMI Bearings
- Brand Name: AMI Bearings
- Part Number: AMIUCST205-16
- MPN: UCST205-16
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
-
Price:
UCST205-16 is built to make tensioning and alignment easier. The take-up style allows controlled adjustment in take-up frames, making it ideal for conveyors and drive assemblies where belt or chain tension must be set and maintained.It supports a 1 in bore and includes clear envelope dimensions for fitting the unit into take-up rails and assemblies with confidence.
| Base Thickness | : | 3/8 in |
| Bearing Material | : | AISI 52100 Steel |
| Bore Diameter | : | 1 in |
| Height | : | 2-7/16 in |
| Length | : | 3-1/2 in |
| Series | : | UCST200 |
| Width | : | 2 in |
- Type: wide-slot take-up mounted bearing unit (set screw locking)
- Shaft bore (Bore Size): 1 in
- Lubrication fitting tap: 1/4-28 UNF
- Weight: 1.76 lb
- Take-up slot width: 5/8 in
- Mounting hole diameter: 3/8 in
- Overall base length: 3-1/2 in
- Overall unit width: 3-13/16 in
- Shaft center height from base: 2-7/16 in
- Overall unit height: 1.245 in
