AMI Bearings UCFU310-31 AMIUCFU310-31
  1. pin-int

AMI Bearings UCFU310-31 AMIUCFU310-31

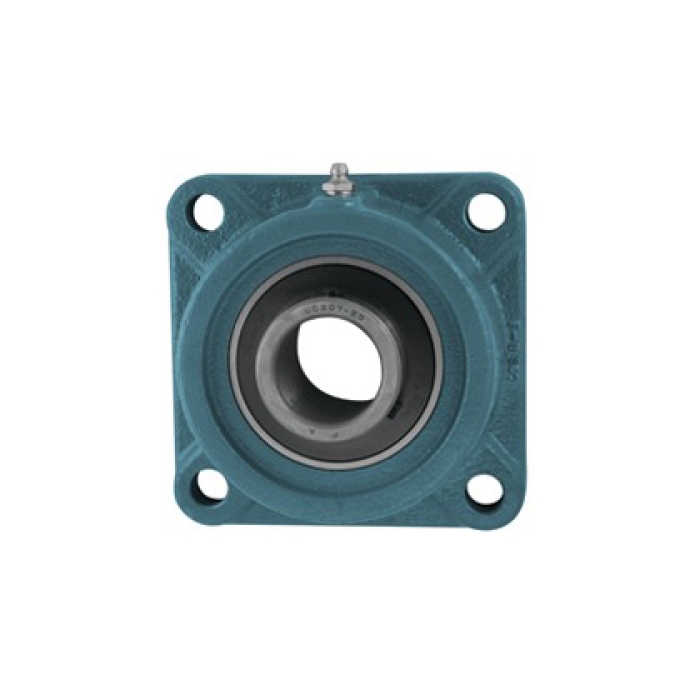

UCFU310-31 is a bracket-style 4-bolt flange unit for 1-15/16" shafts, offering strong support and a stable flange footprint for heavier-duty use.

  • Manufacturer: AMI Bearings
  • Brand Name: AMI Bearings
  • Part Number: AMIUCFU310-31
  • MPN: UCFU310-31
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

UCFU310-31 is designed for applications that demand more rigidity than a standard flange unit. The bracket-style housing provides a robust mounting solution for heavier conveyors, processing equipment, and industrial drives where stable shaft support is critical.It supports a 1-15/16 in bore and includes key bolt pattern and envelope dimensions for straightforward mounting plate design and replacement.

Bore Diameter      :      1-15/16 in
Series      :      UCFU300
  • Type: bracket-style 4-bolt flange mounted bearing unit (set screw locking)
  • Shaft bore (Bore Size): 1-15/16 in
  • Bolt size: 5/8 in
  • Lubrication fitting tap: 1/8-27 NPT
  • Weight: 12.2 lb
  • Mounting hole center-to-center: 6-1/2 in
  • Overall flange width: 5-1/8 in
  • Mounting hole diameter: 11/16 in
  • Housing projection/depth: 2-13/32 in
  • Overall unit height: 2.968 in
