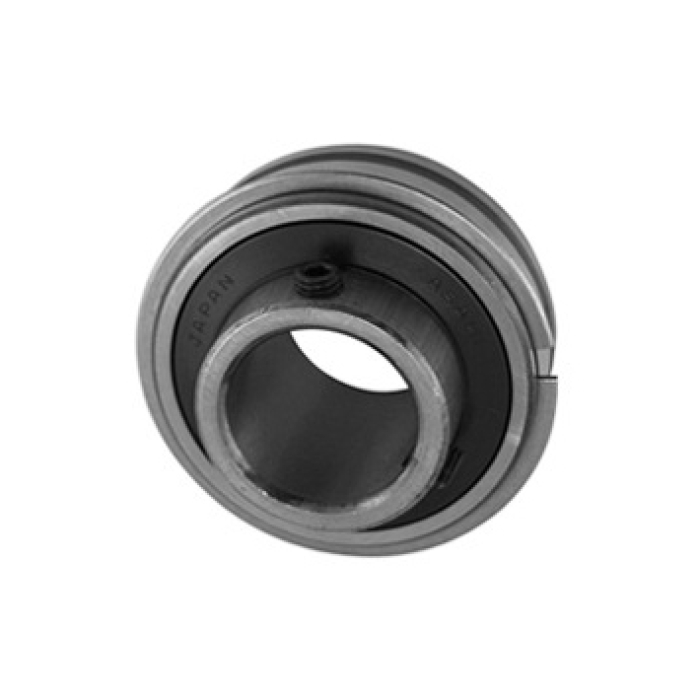

AMI Bearings SER206-17 AMISER206-17
SER206-17 is a set-screw locking insert for 1-1/16" shafts, a solid all-around option for quick replacement and reliable shaft retention.
- Manufacturer: AMI Bearings
- Brand Name: AMI Bearings
- Part Number: AMISER206-17
- MPN: SER206-17
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
-
Price:
SER206-17 is a shelf-friendly insert that makes repairs fast: align the shaft, tighten the set screws, and get back to production. It is commonly used in industrial equipment where reliable retention and quick service are top priorities.Core fit dimensions include a 1-1/16 in bore, 2.4409 in insert OD, and a 1-1/2 in inner ring width for stable shaft support.
| Bore Diameter | : | 1-1/16 in |
| Series | : | SER200 |
- Type: set screw locking bearing insert (cylindrical OD)
- Shaft bore (Bore Size): 1-1/16 in
- Outside diameter (Insert OD): 2.4409 in
- Inner ring width: 1-1/2 in
- Outer ring width: 7/8 in
- Chamfer/fillet radius: 0.059 in
- Set screw thread: 1/4-28
- Dynamic load rating: 4410 lbf; Static load rating: 2540 lbf
- Weight: 0.84 lb
