AMI Bearings MU000 AMIMU000

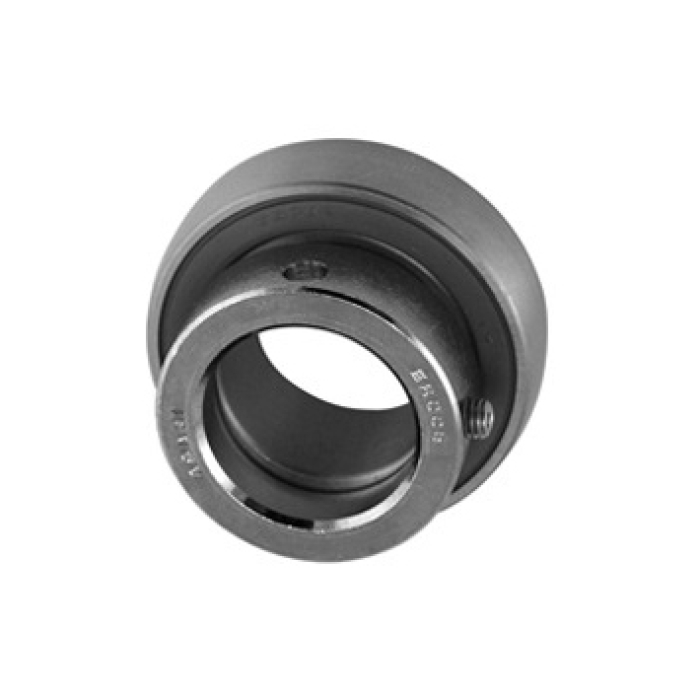

MU000 is a miniature metric insert for 10 mm shafts, built for compact mechanisms where space is tight and smooth rotation is essential.
- Manufacturer: AMI Bearings
- Brand Name: AMI Bearings
- Part Number: AMIMU000
- MPN: MU000
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
-
Price:
MU000 is designed for compact mechanisms that still need smooth, reliable bearing performance. It is a great fit for small conveyors, light automation fixtures, guide rollers, and specialty equipment where envelope size is tight.Dimensional fit is easy to verify with a 10 mm bore, 26 mm insert OD, and 17.5 mm overall width. These core dimensions help prevent misfits and make replacement planning straightforward.
| Bore Diameter | : | 10 mm |
| Load Capacity | : | Dynamic 1370 / Static 550 N |
| Outside Diameter | : | 26 mm |
| Series | : | MU000 |
| Width | : | 10.1 mm |
- Type: miniature metric bearing insert
- Shaft bore (Bore Size): 10 mm
- Outside diameter (Insert OD): 26 mm
- Overall width: 17.5 mm
- Inner ring width: 11 mm
- Outer ring width: 8 mm
- Chamfer/fillet radius: 0.5 mm
- Dynamic load rating: 695 kgf; Static load rating: 370 kgf
- Weight: 0.15 lb
