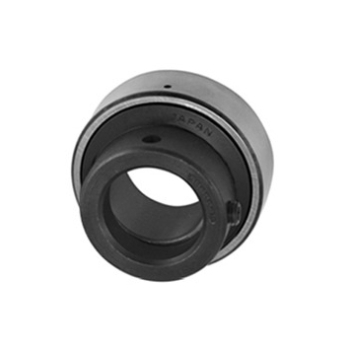

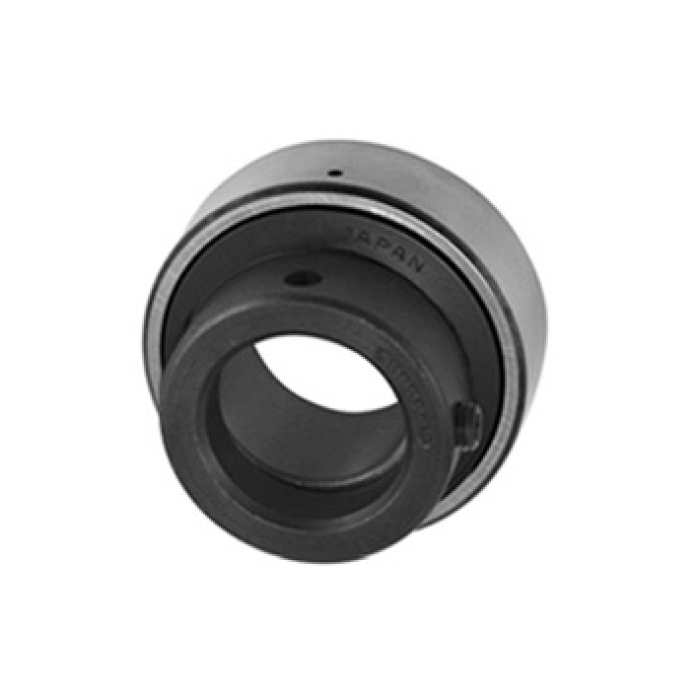

AMI Bearings KHR207 AMIKHR207
KHR207 is an eccentric collar insert designed for 35 mm shafts, offering strong, maintenance-friendly locking in standard insert housings.
- Manufacturer: AMI Bearings
- Brand Name: AMI Bearings
- Part Number: AMIKHR207
- MPN: KHR207
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
-
Price:
KHR207 delivers a larger-bore insert option with the convenience of eccentric collar locking. It is a reliable choice for equipment that sees vibration or reversing loads, such as farm machinery, processing equipment, and conveyor systems.With a 35 mm bore, 72 mm insert OD, and 38.9 mm overall width, it is easy to verify fit, match housings, and maintain consistent interchange during repairs.
| Bearing Material | : | Steel (AISI 52100) |
| Bore Diameter | : | 35 mm |
| Finish | : | Standard |
| Load Capacity | : | Dynamic 25500 / Static 15500 N |
| Outside Diameter | : | 72 mm |
| Series | : | KHR200 |
- Type: eccentric collar locking bearing insert (cylindrical OD)
- Shaft bore (Bore Size): 35 mm
- Outside diameter (Insert OD): 72 mm
- Overall width: 38.9 mm
- Inner ring width: 25.4 mm
- Outer ring width: 17 mm
- Chamfer/fillet radius: 2 mm
- Dynamic load rating: 2450 kgf; Static load rating: 1500 kgf
- Weight: 0.84 lb
