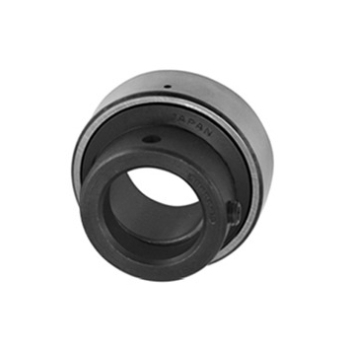

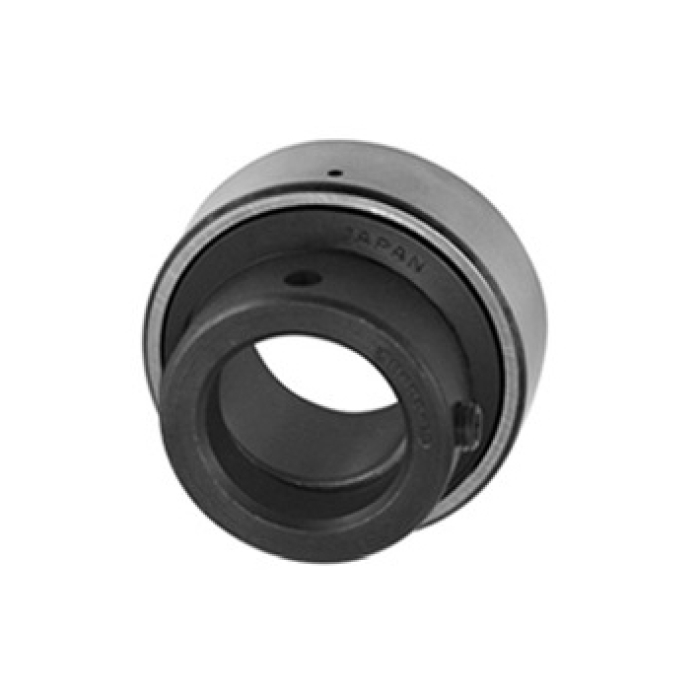

AMI Bearings KHR205 AMIKHR205
KHR205 is a normal-duty eccentric collar insert for 25 mm shafts, ideal for simple, secure mounting in compatible housings where fast replacement matters.
- Manufacturer: AMI Bearings
- Brand Name: AMI Bearings
- Part Number: AMIKHR205
- MPN: KHR205
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
-
Price:
KHR205 is a practical, maintenance-friendly insert designed for quick replacement and dependable shaft retention. The eccentric collar locking style helps resist loosening in vibration-prone equipment, making it a great fit for light conveyors, fans, agricultural attachments, and general rotating machinery.Key fit dimensions include a 25 mm bore, 52 mm insert outside diameter, and 31 mm overall width, helping you match the correct housing and confirm interchange during rebuilds.
| Bearing Material | : | Steel (AISI 52100) |
| Bore Diameter | : | 25 mm |
| Finish | : | Standard |
| Load Capacity | : | Dynamic 14000 / Static 7800 N |
| Outside Diameter | : | 52 mm |
| Series | : | KHR200 |
- Type: eccentric collar locking bearing insert (cylindrical OD)
- Shaft bore (Bore Size): 25 mm
- Outside diameter (Insert OD): 52 mm
- Overall width: 31 mm
- Inner ring width: 21.5 mm
- Outer ring width: 15 mm
- Chamfer/fillet radius: 1.5 mm
- Set screw thread: M6x0.75
- Dynamic load rating: 1430 kgf; Static load rating: 800 kgf
- Weight: 0.45 lb
