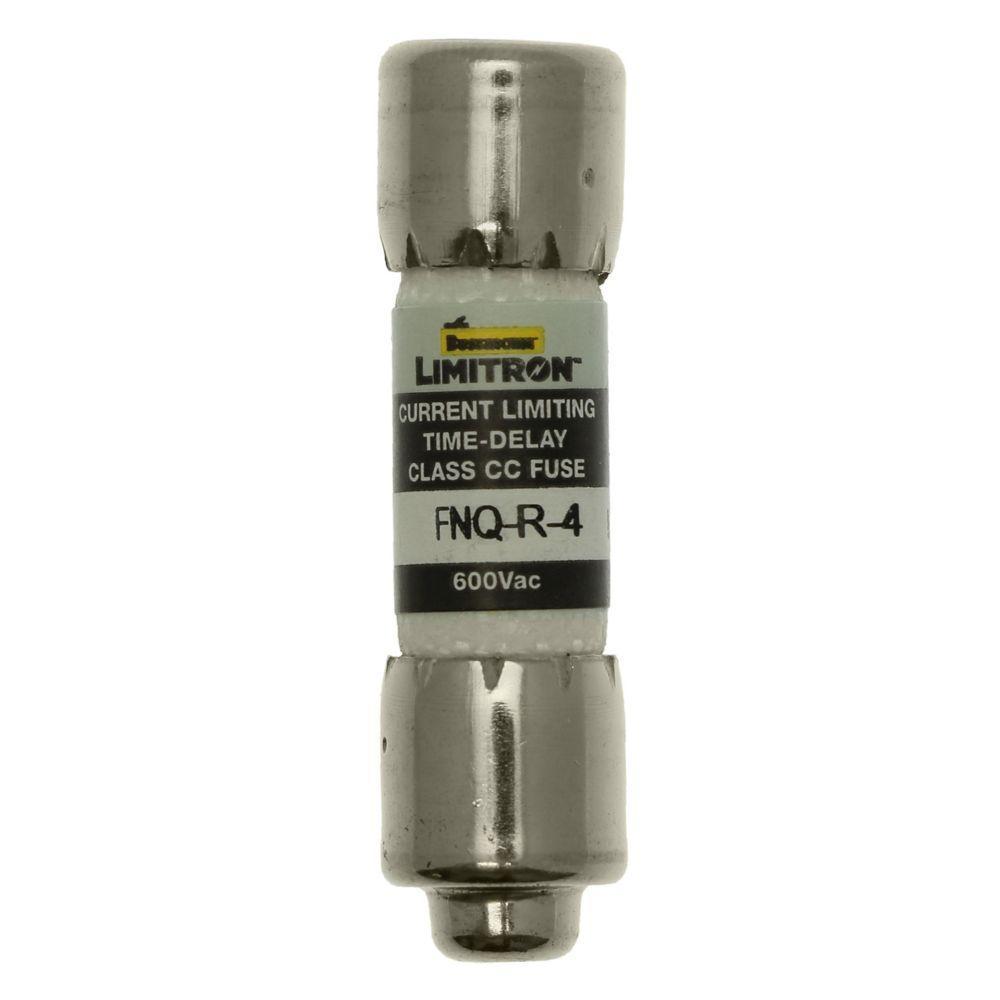

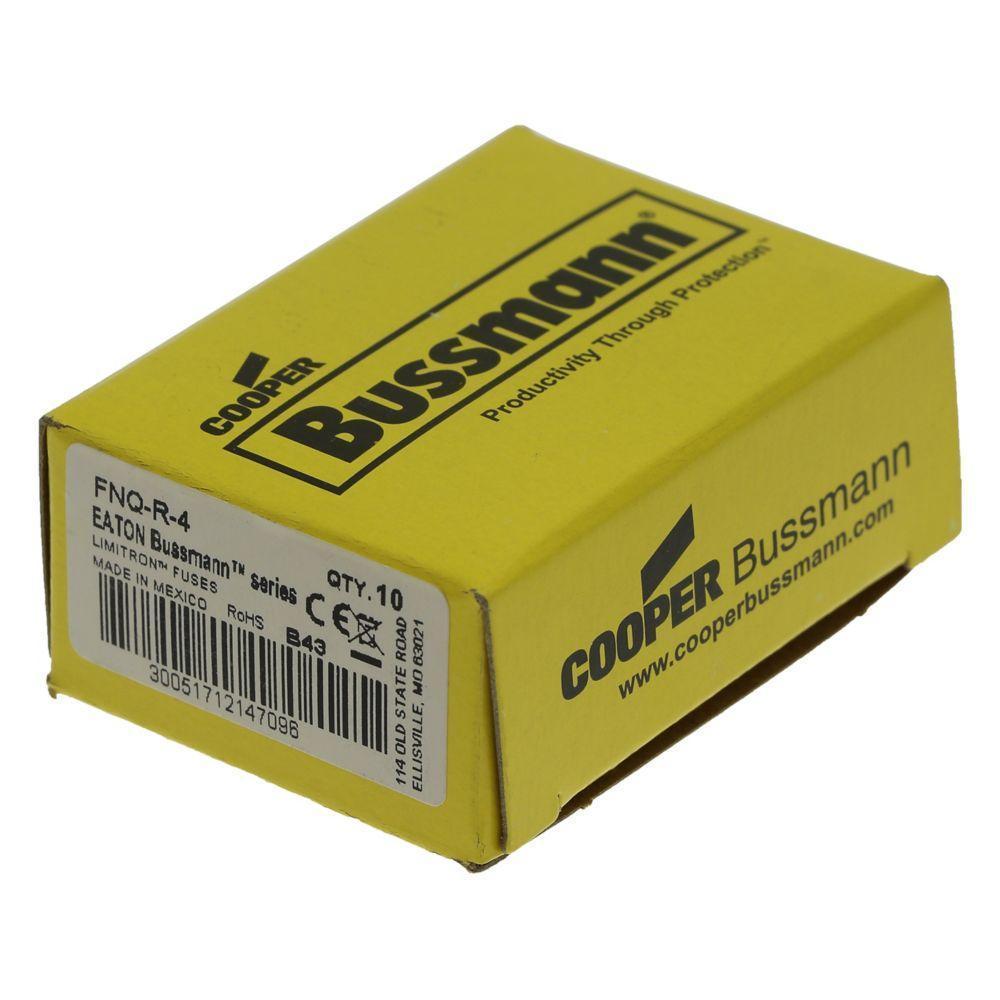

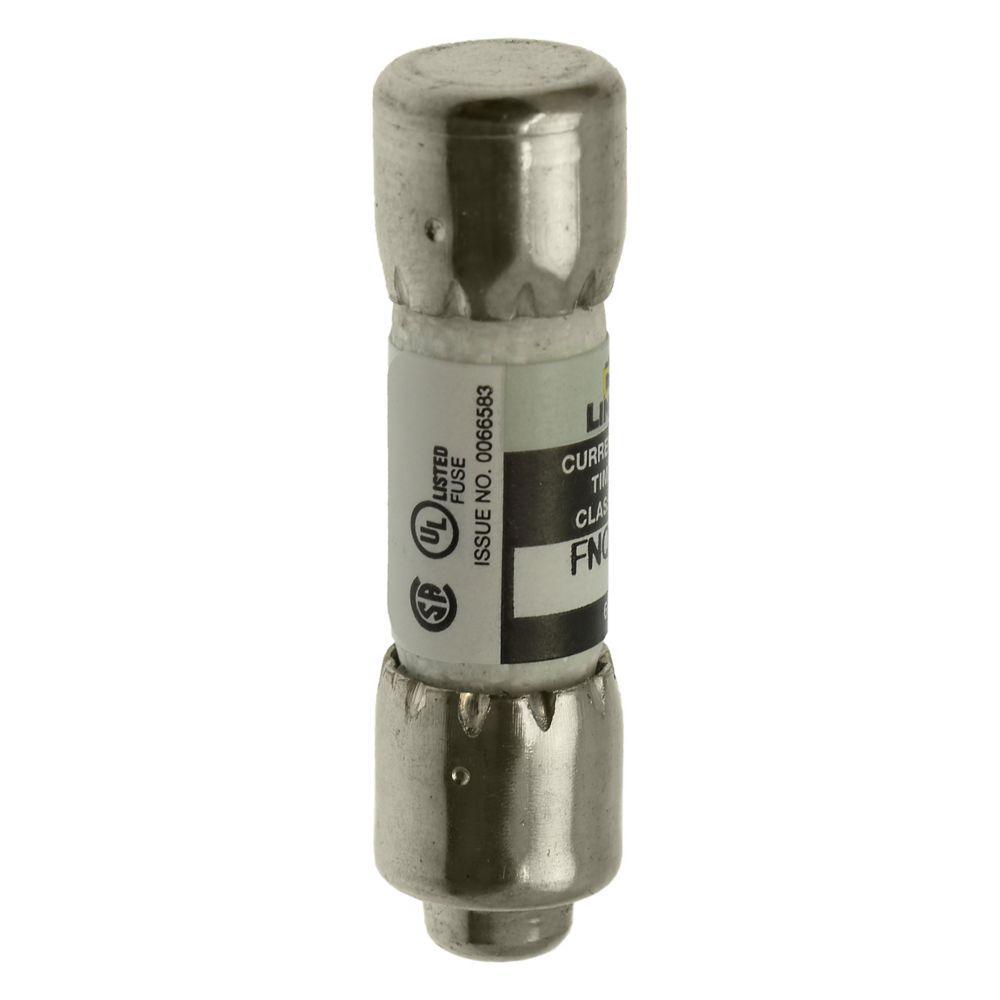

Bussmann FNQ-R-4 BUSFNQ-R-4

Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection

Bussmann CC-Tron® Time Delay Fuse, Current Limiting High Inrush, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 4 A, 600 V, 200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size

• Time delay compatible with inrush characteristic of small control transformers
• Current limitation at class CC levels provides maximum component short circuit current rating protection
• 200 kA interrupting rating provides high ratings for control circuit locations
• Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
• 12 s at 200% response time
• Nickel plated brass end caps

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bussmann_FNQ-R-4_Specification_Sheet.pdf
• VIDEO LINK https://www.youtube.com/watch?v=YMvqUyoETXk
