Nexen 802850 NEX802850

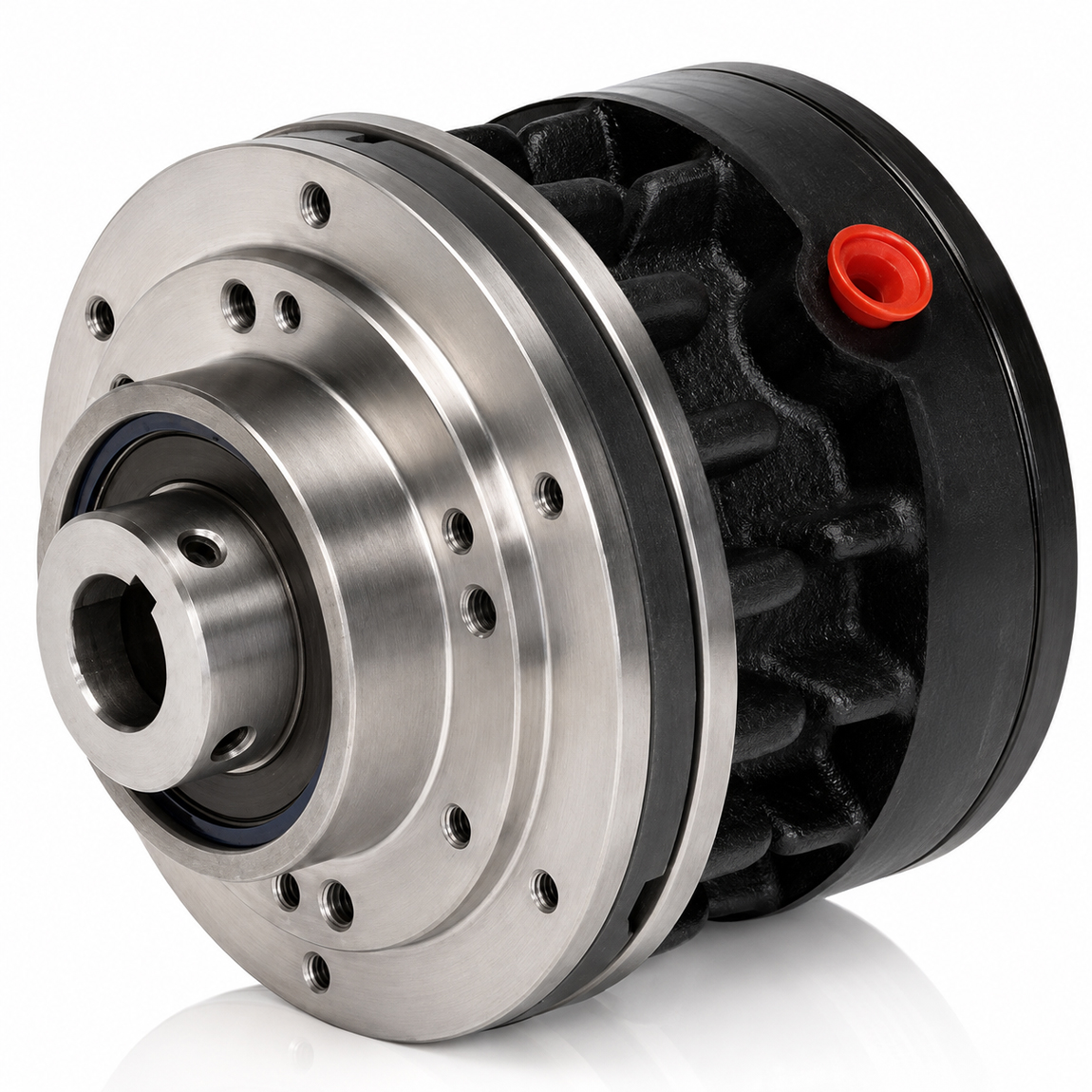

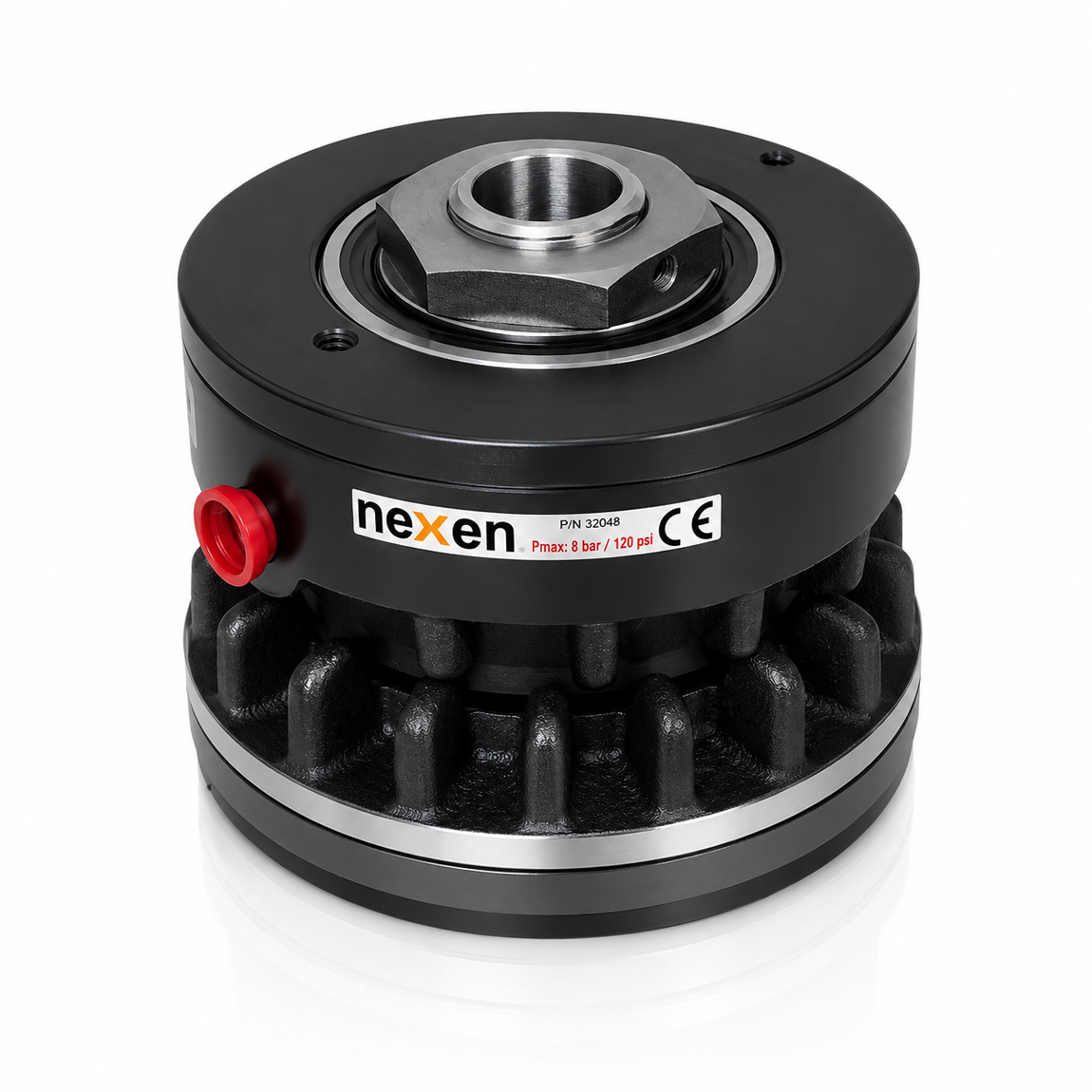

Compact Nexen F-450 pneumatic friction clutch for starting, connecting/disconnecting and torque-limiting applications. Air engagement, spring release, pilot output and a keyed shaft-mounted design provide flexible integration with pulleys, sprockets and compatible drive components.

Nexen 802850 is an F-450 Air Champ pneumatic friction clutch with a 0.875 in straight bore, keyway and two setscrews. The shaft-mounted, pilot-output design is air engaged and spring released, allowing customer-supplied pulleys, sprockets or compatible Nexen couplings to be mounted to the output. Maximum ratings include 140 in-lb static torque, 119 in-lb dynamic torque, 3600 rpm and 80 psi operating pressure. Optional adapter bushings can reduce the bore for 0.500 to 0.750 in shafts.

• F-450 pneumatic single-plate friction clutch
• 7/8 in / 0.875 in finished bore
• Straight bore with keyway and two setscrews
• Shaft mounted with pilot output
• Air engaged / spring released
• 140 in-lb maximum static torque
• 119 in-lb maximum dynamic torque
• 3600 rpm maximum speed
• 80 psi maximum operating pressure
• 5 psi minimum engagement pressure
• 1/8 NPT air inlet
• 4.56 in outside diameter
• 4.75 in overall length
• 2.500 in pilot diameter
• 0.30 hp continuous thermal dissipation
• Optional bushings reduce bore to 0.500–0.750 in

• Drawing https://www.tristate-bearing.com//ASSETS/DOCUMENTS/ITEMS/EN/802850S.pdf
