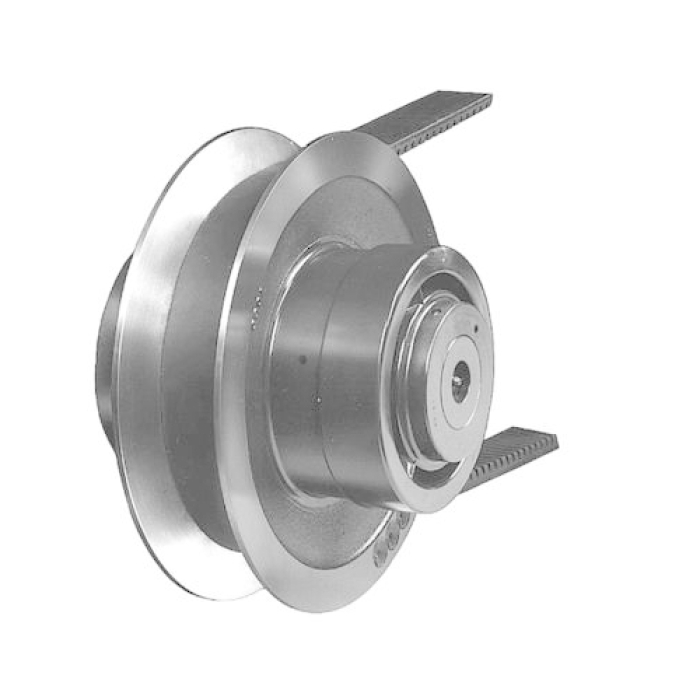

Hi-Lo DCW1270 X 1 1/8 HIL12701 1/8
  1. pin-int

Hi-Lo DCW1270 X 1 1/8 HIL12701 1/8

Product Number: HIL12701 1/8, Product Type: SHEAVE, Manufacturer Part Number: DCW1270 X 1 1/8, Weight: 9.15,   HP Rating 1750 RPM: 3,   HP Rating 1150 RPM: 2, Torque Capacity 1 lb-in: 108, Max PD: 7.28, Min PD: 2.42, Ratio: 03:01:00, Belt Size: 1922V, Pulley Outside Diameter: 7.5, Total Width including Hub: 5.88, C: 2.87, D: 3.25, E: 2.25, F: 5.07, G: Bores: 1-1/8, Shaft Travel in: 3.4

  • Manufacturer: Hi-Lo Manufacturing
  • Brand Name: Hi-Lo
  • Part Number: HIL12701 1/8
  • MPN: DCW1270 X 1 1/8
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Product Type: SheaveManufacturer Part Number: DCW1270 X 1 1/8Weight: 9.15 lbsThe HIL12701 1/8 Sheave is optimized for use with variable speed belts, providing greater speed ratio changes than standard V-belts while ensuring belt alignment between the variable speed pulley and the companion sheave.Key Features:Uses Variable Speed Belts: Allows for greater speed ratio change while maintaining alignment.Pulley Face Material: Lightweight, corrosion-resistant aluminum alloy.Permanently Lubricated Moveable Face Bushings: High load-carrying capacity with oil impregnation for corrosion resistance.Torque Sensing Design: Belt tension is automatically regulated according to load requirements.

Bore Diameter      :      1-1/8 in
Outside Diameter      :      7-1/2 in
Pitch Diameter      :      7.28 to 2.42 in
HP Rating (1750 RPM): 3 HPHP Rating (1150 RPM): 2 HPTorque Capacity: 108 lb-inMax PD: 7.28 inMin PD: 2.42 inRatio: 3:01Belt Size: 1922VPulley Outside Diameter: 7.5 inTotal Width: 5.88 in
