Hi-Lo DCV150 X 7/8 HIL1507/8
  1. pin-int

Hi-Lo DCV150 X 7/8 HIL1507/8

Product Number: HIL1507/8, Product Type: SHEAVE, Manufacturer Part Number: DCV150 X 7/8, Weight: 4.1,   HP Rating 1750 RPM: 1.5,   HP Rating 1150 RPM: 1, Torque Capacity 1 lb-in: 54, Max PD: 4.7, Min PD: 1.88, Ratio: 2.5:1, Belt Size: B, Pulley Outside Diameter: 5, Total Width including Hub: 4.38, C: 2.19, D: 2.25, E: 2, F: 4.06, G: Bores: 7/8, Shaft Travel in: 2.1

  • Manufacturer: Hi-Lo Manufacturing
  • Brand Name: Hi-Lo
  • Part Number: HIL1507/8
  • MPN: DCV150 X 7/8
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

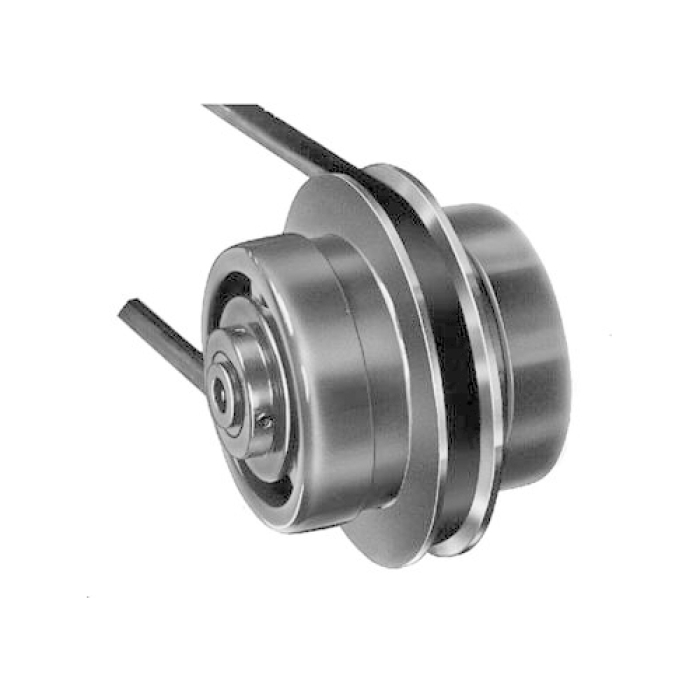

Product Type: SheaveManufacturer Part Number: DCV150 X 7/8Weight: 4.1 lbsThe HIL1507/8 Sheave ensures optimal belt alignment with its two-face movable design, making it essential for drives with close center distances.Key Features:Two-Face Movable Design: Prevents belt misalignment in close center distance drives.Pulley Face Material: Corrosion-resistant, lightweight aluminum alloy.Permanently Lubricated Moveable Face Bushings: High load-carrying capacity, oil-impregnated to prevent wear.Torque Sensing Design: Automatically adjusts belt tension to reduce bushing wear.

Bore Diameter      :      7/8 in
Outside Diameter      :      5 in
Pitch Diameter      :      4.7 to 1.88 in
HP Rating (1750 RPM): 1.5 HPHP Rating (1150 RPM): 1 HPTorque Capacity: 54 lb-inMax PD: 4.7 inMin PD: 1.88 inRatio: 2.5:1Belt Size: BPulley Outside Diameter: 5 inTotal Width: 4.38 in
