FK Bearings CF3 FKBCF3
  1. pin-int

FK Bearings CF3 FKBCF3

Bore Diameter : .190, Outside Diameter : 5/8, Width: 5/16, Ball DIA: .437, Center to end Length: 1.062, Thread Size: 10-32, Stud Length: .500, Mis Angle: 20, Approx Weight (lbs): 1, ULT Static Radial Load (PTFE Lined).1: 2,100, ULT StaticRadial Load (PTFE LINED): 1,637, Stud Outside Dia: .406

  • Manufacturer: FK Bearings Inc
  • Brand Name: FK Bearings
  • Part Number: FKBCF3
  • MPN: CF3
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

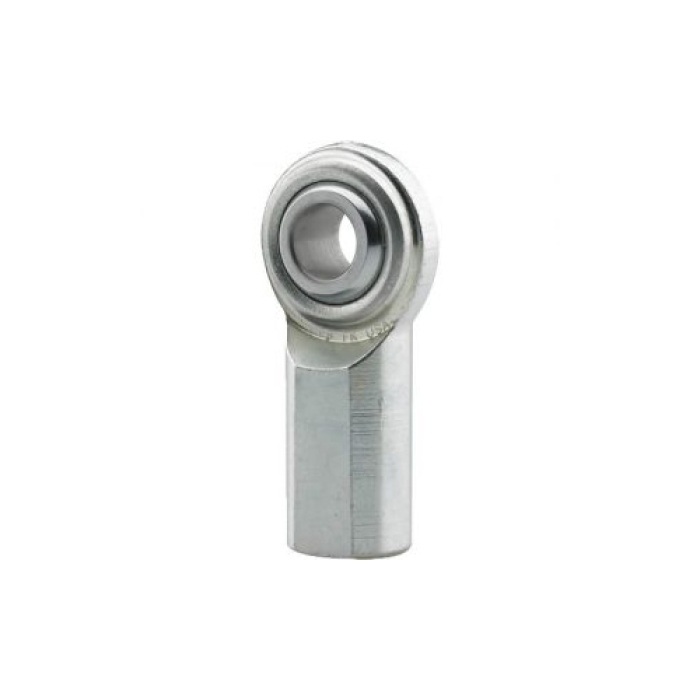

The CF Series Rod End is a versatile and reliable component, designed with a sturdy 2-piece construction that meets the demands of various industrial applications. The ball is made from high-quality 52100 steel, heat-treated to a minimum hardness of Rc 56, and hard chrome plated to provide excellent durability, corrosion resistance, and smooth performance under load.The body of the CF Series Rod End is constructed from low carbon steel, zinc plated, and chromate treated, offering enhanced protection against rust and wear, ensuring a long service life in challenging environments.This series offers the option of a PTFE liner, which reduces friction and improves longevity in high-stress applications. Additionally, studs are available for customized installation, and an optional lubrication fitting can be added for those who require regular maintenance. The FK Bearings CF Series Rod End is an excellent choice for those seeking a durable, high-performance rod end with customizable options to suit specific needs.

Bore Diameter           :      .190 in
Outside Diameter       :      5/8 in
Width      :      5/16 in
